Fraunhofer technical centre IPA/IGB BT D

Reference details

Product areas Solar shading Entrances Security
Schüco Systems ALB, Hollow louvre blade, active, concealed ADS 65.NI SP Janisol 2 EI30 ADS 80 FR 30 ADS 65 HD
Location Stuttgart, Baden-Württemberg
Completion 2014
Architects Hascher + Jehle
Specialist company NR Metallbau GmbH
Picture credits © Baubild, Stephan Falk

Product information

ALB, Hollow louvre blade, active, concealed

Schüco Sun Shading System ALB, Hollow louvre blade, active, concealed

Active large louvre blades with concealed drive as a flexible shading system

The drive and the mechanics of the Schüco ALB (Aluminium Louvre Blade) sun shading system are protected and almost fully concealed when installed in the drive mullion profile. This technology allows the hollow louvre blades to be rotated 360°.

Learn more

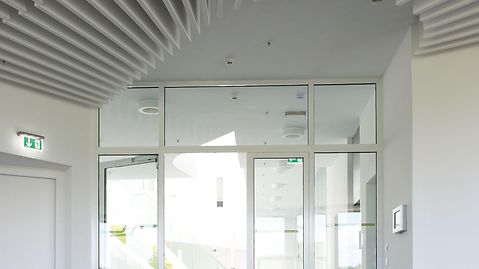

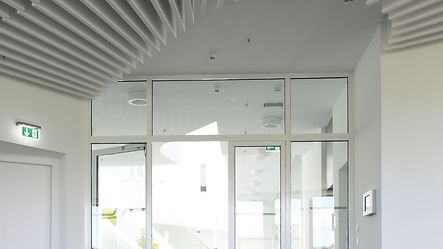

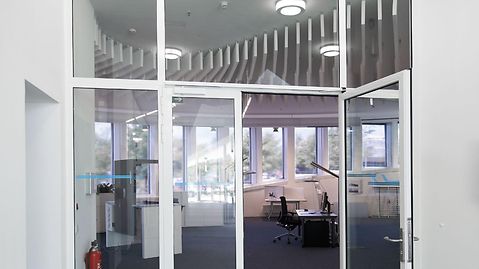

Janisol 2 EI30

Janisol 2 EI30

All-round fire protection system with multiple applications

As an all-round fire protection system for door and fixed glazing constructions, Janisol 2 EI30 (T30/F30) combines the highest in building safety standards with optimal design freedom.

Learn more

ADS 65 HD

Schüco Door System ADS 65 HD

Highly stable system – optimised for continuous loads in commercial construction

Large-scale door constructions fabricated using the Schüco ADS 65 HD (Heavy Duty) door system create striking visual features that grant every building a special character. In public buildings especially, the robust aluminium doors offer maximum stability, even with heavy use and large opening widths.

Learn more
