Schüco Window System FocusIng
NEW SYSTEM:
Schüco FocusIng
Innovative. Linear. Sustainable*.
The Schüco PVC-U series with a basic depth of 70/76 mm has been specially developed for use in modernisation projects, but is also ideally suited to modern newbuilds thanks to its clear, linear design and optimal performance characteristics. With a choice of two or three gasket levels, individual requirements for thermal insulation, sound reduction and weather resistance can be met.
Schüco FocusIng has been developed to make the most efficient use of materials containing a high proportion of recycled material in its inner core.

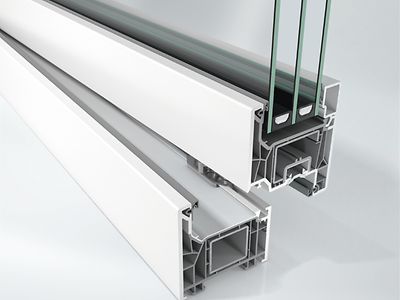

The 5/6-chamber profile construction, which can be constructed as a twin system with both a rebate gasket and a centre gasket, achieves excellent thermal insulation values, with a Uw value of below 0.80 W/(m²K) with appropriate triple glazing (Uf = 1.0 W/(m²K)). Structurally, Schüco FocusIng has the option to install triple glazing up to 54 millimetres. The outer frame has a basic depth of 70 millimetres, the vent basic depth is 76 millimetres, the glass edge cover is 20 millimetres and the rebate height is 3 millimetres. As a result, it can be used in both renovation projects and newbuilds, and the wide range of unit options including single-field and multi-field windows, parallel-sliding and tilt/slide windows, window doors and side entrance doors means that it can be installed in very diverse construction scenarios.
In addition, the modern system looks simply stunning. Thanks to its minimalist and linear appearance, as well as numerous design options, Schüco FocusIng fits seamlessly into any façade. Whether as a colourful, eye-catching design for an accentuated aesthetic or as a harmonious design coordinated with other building elements. With a wide range of more than 300 foils for the surface finish, Schüco FocusIng can meet almost any visual design requirements. Developed as a modular window system, thanks to its clear and discreet design, it can be combined with many Schüco window, door and sliding door solutions – made from PVC-U and aluminium.
* Depending on the profile geometry, maximum use of secondary material in the inner core is possible / Cost-effective profile design for efficient use of material / minimised variety of components within the system
Fabrication benefits
- Compatible with the Schüco LivIng and Schüco CT 70 systems, ensuring lower storage and transport costs thanks to the use of identical parts
- Two or three continuous sealing levels with high-quality, weldable gaskets rolled in the factory
- Best performance characteristics due to the improved geometry of the inner chamber and rebate in this basic depth range
- Available in four profile colours (base material): white, cream white, caramel and dark grey
- High level of process reliability due to the ingenious design and optimised accessories
- Sustainable profile system due to the inner core made from recycled material, the minimal number of components and its economical design
