Spotlight on:

Product highlights

We are setting the benchmark for healthy, smart and secure building with outstanding, pioneering solutions. For our AS FD 75 folding slliding system this means:
1
Efficient and safe during design, fabrication and installation processes
2
Forgives mistakes and is adaptable and stable
3
Runs quietly and is watertight

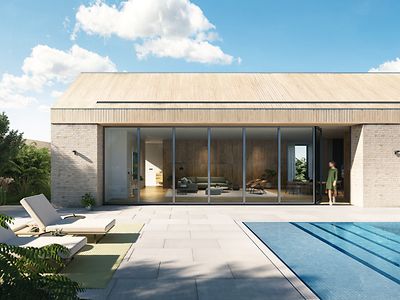

Folding sliding systems and transparency don't go together? Yes, with a vent width of up to 1,500mm and a narrow face width of 90mm, the AS FD 75/90.HI sets new standards when it comes to transparency.

Can you spare 3 minutes? Watch now and discover the Schüco AS FD 75 folding sliding door.

image cmcid:171033

With extremely slim face widths and excellent thermal insulation, the Schüco AS FD 90.HI folding sliding system really stands out.

An extensive selection of opening and locking types allow individual design with a high degree of planning freedom.

3 different threshold types, including a flat threshold with great rollover capacity, make the system adaptable to many installation situations.

An optional side-hung door enables quick passage, while an integrated magnetic retaining catch ensures secure opening and closing of the folding sliding unit.

The system now offers a higher level of security, meeting burglar resistance class RC 2.

The improved sealing concept with two continuous gasket levels offers greater watertightness and air permeability values for all opening types.

Fabrication benefits

  • Corner and T-cleats can be screwed on, ensuring simple and quiet installation of the outer frame.
  • Lateral adjustment profiles in the outer frame compensate for tolerances once installed.
  • Extremely quiet operation of the vents is achieved through massive stainless steel tracks and stainless steel rollers.
  • The system is easy to transport and takes up little space on the construction site, making building completion very efficient.
  • A reduced number of insert profiles allows for easy assembly.
  • Guide carriers are secured against becoming detached in the top outer frame.
  • 2 profile widths can be selected for sash frame profiles.

Gallery

Technical information

Documentation

Specification texts

CAD data

Test documents

Brochures
