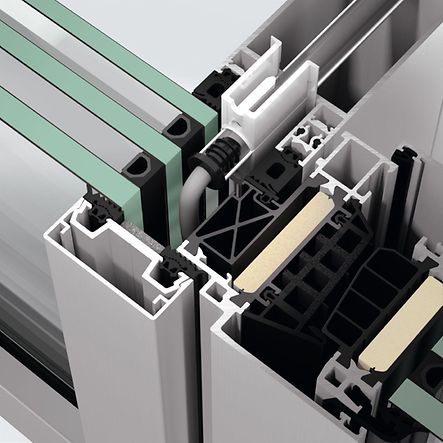

Schüco Façade System FWS 60.HI
Highly thermally-insulated mullion/transom façade with 60 mm face width for a variety of solutions
The highly thermally insulated Schüco FWS 60.HI (High Insulated) façade system offers high flexibility and attractive design options for highly thermally insulated façades and skylight areas in a narrow steel look, including optimised fabrication and installation processes. Thanks to a broad system range, solutions for the most varied requirements and applications can be implemented.
A transparent system solution integrated in the profile for spandrel safety barriers blends seamlessly and elegantly into the external façade appearance. The required safety barrier loading for floor-to-ceiling opening units and low spandrel heights can be implemented with consistent profile face widths and a continuous profile.
In terms of design freedom, the mullion/transom façade with 60 mm face width offers a large selection of pressure plates and façade cover caps as well as the option of being combined with Schüco window, door and sliding systems.
System-optimised components guarantee the simple and reliable integration of electrical components, e.g. for automated Schüco door or sun shading installations.
Fabrication benefits
- Prefabricated system components guarantee increased fabrication convenience, minimal sources of error and increased installation speed
- System components for wiring and cable feeds: simple and secure integration of mechatronic components such as automated Schüco opening units or Schüco sun shading systems
- Continuous attachment to building structure for optimum foil guide: clip-on function for simple profile installation, including colour coding for correct positioning of the foil for attachment to the building structure
