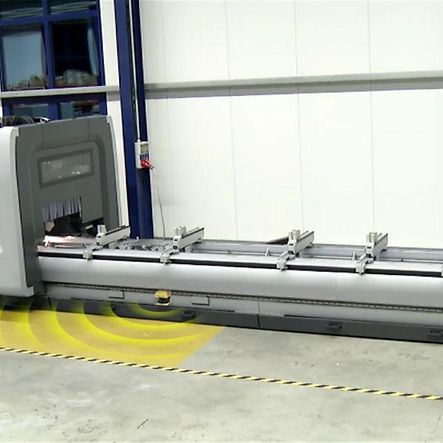

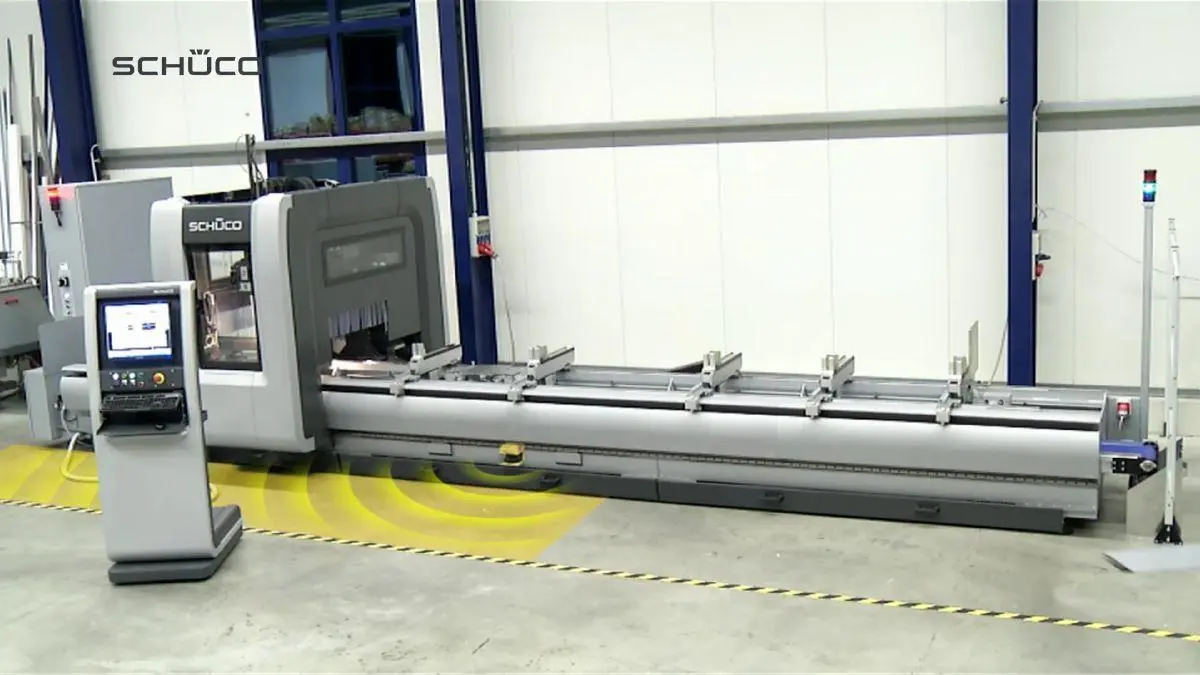

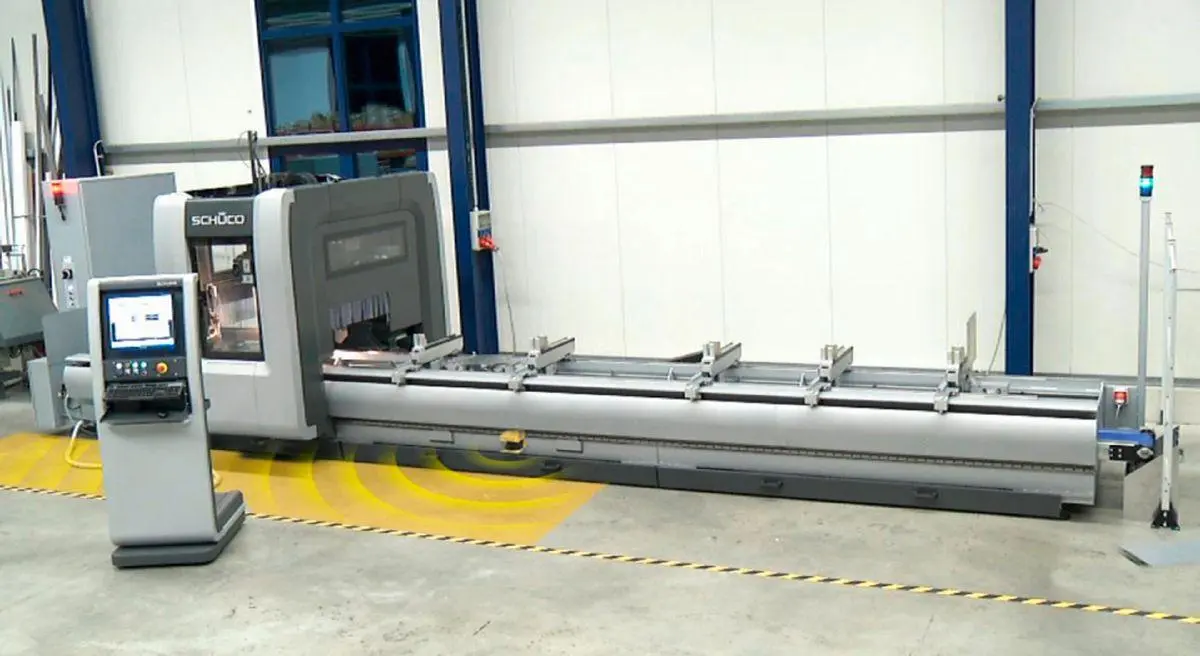

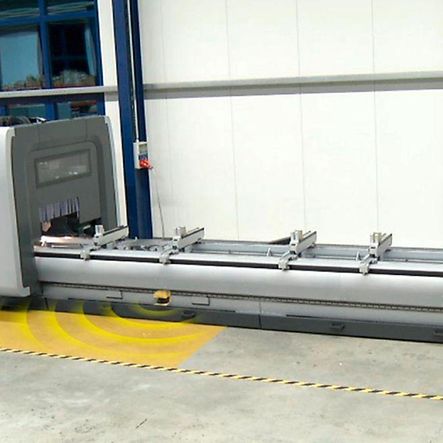

Schüco AF 450

First class efficiency
The four-axis machine sets new standards in its category in terms of flexibility: tools are changed automatically, profiles that have already been cut to size can be milled, drilled, notched and threaded, and the division of the working area makes it possible to machine profiles in parallel during setup in shuttle operation. Pre-head and three-sided machining are carried out with maximum efficiency and at high positioning speed thanks to powerful direct drives. Aluminium and steel are comfortably machined with state-of-the-art technology - this always leads to excellent results.
Fabrication benefits
- Powerful and flexible thanks to the 7.5 kW milling motor and the automatic tool changer.
- Machining functions such as notching, milling, drilling and thread cutting can be carried out on profiles that have already been cut to size.
- Effective direct drives and the latest digital technology enable the machine to be positioned at high speed.
- The central lubrication system for the main axles minimizes maintenance work.
Gallery










Technical information
- Height [mm]
- 2900
- Depth [mm]
- 3150
- machinable material
- Aluminium, Steel
- Rated power (machine)
- 12 kW
- Speed [1/min]
- 0 - 24,000 1/min
- Compressed air
- 7 bar
- Coverage
- 170
- Consumption unit
- NL/cycle
- Max. Wall thickness (steel)
- 5 mm
- Number NC axes
- 4
- Y-axis
- 1420 mm
- Z-axis
- 635 mm
- X-axis
- 80
- Y-axis
- 60
- Z-axis
- 40
- Max. Tool length
- 190 mm
- Tool holder
- RC 30
- Side milling cutter Max. d
- 200 mm
- Seats in the tool magazine
- 12
- Number of clamping jacks
- 8
- Number of profile fixed stops
- 4
- Max. profile width
- 420 mm
- Max. profile length
- 7200 mm
- Clamping block positioning
- Automatic - simultaneous
- Max. profile height
- 300 mm
- Width [mm]
- 9650 mm
- Supply voltage (machine)
- 400 V
- Frequency (machine)
- 50
- Rated current (machine)
- 20 kN
- Motor output
- 7.5kW at 6,000 1/min (S1)
- Nominal torque
- 11,9
- Machining length
- 7200 mm
- A-axis
- +/-90° continuous
- Tool magazine
- Moves alongside
