A space to showcase!
New BMW showroom, Esch-sur-Alzette/Luxembourg:

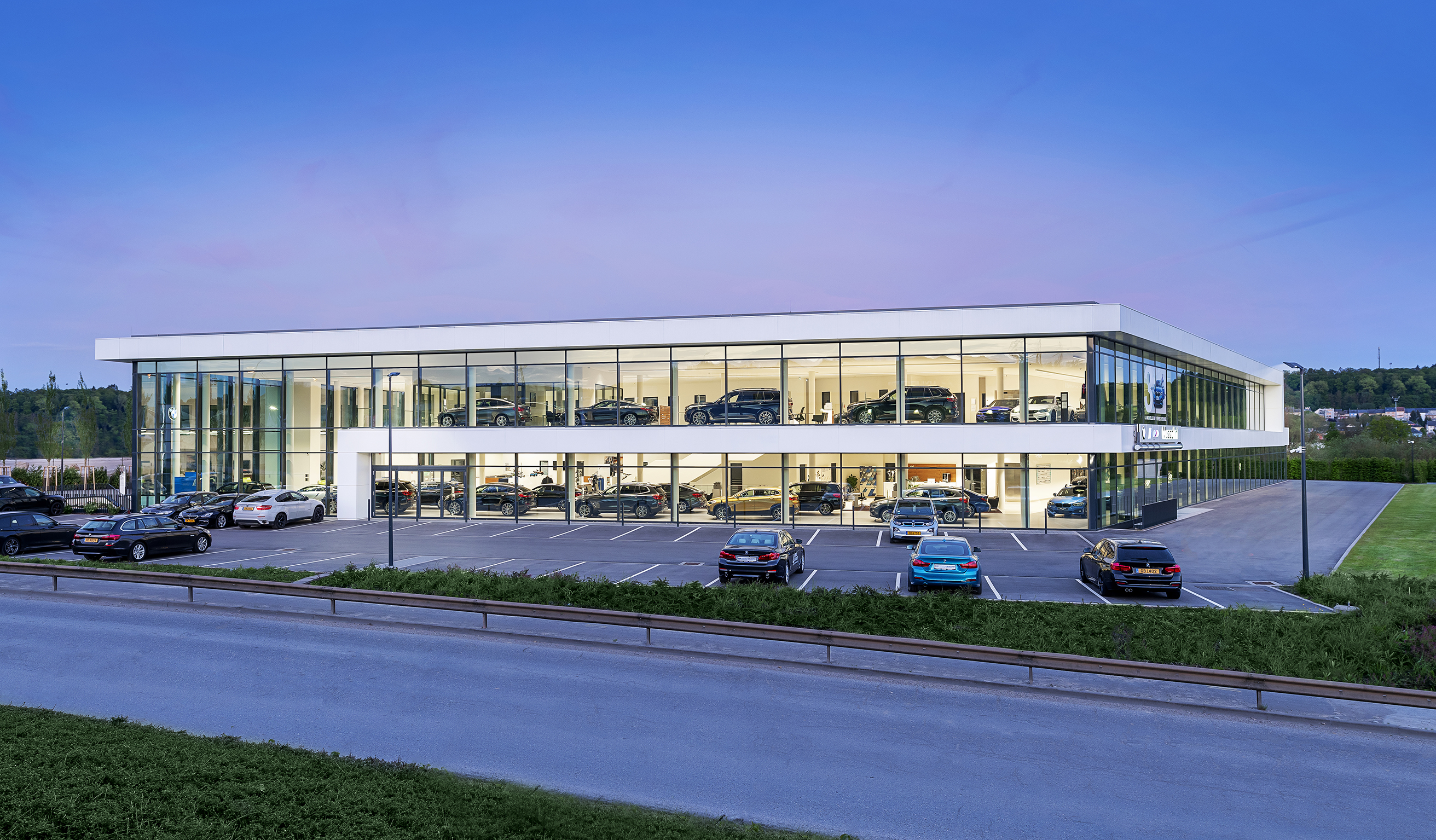

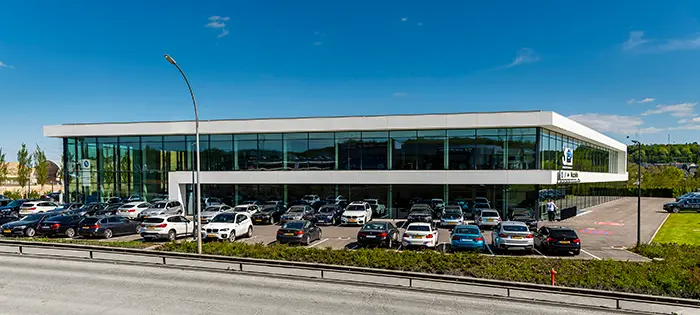

The new BMW Muzzolini garage at the crossroads of a busy main road and the edge of the Um Monkeler industrial area is an eye-catching newbuild that serenely meets the strict corporate identity requirements set by BMW for its official distributors. Just a few materials – glass, steel, white walls – have been used to create a sleek building which makes a clear, unmistakeable statement in this urban mixed-use zone with its continuous façade measuring up to seven and a half metres high made from high-strength VISS 60 profiles from Schüco Jansen Steel Systems.
Downloads
Image credits: Muzzolini garage/Benoit Deprez

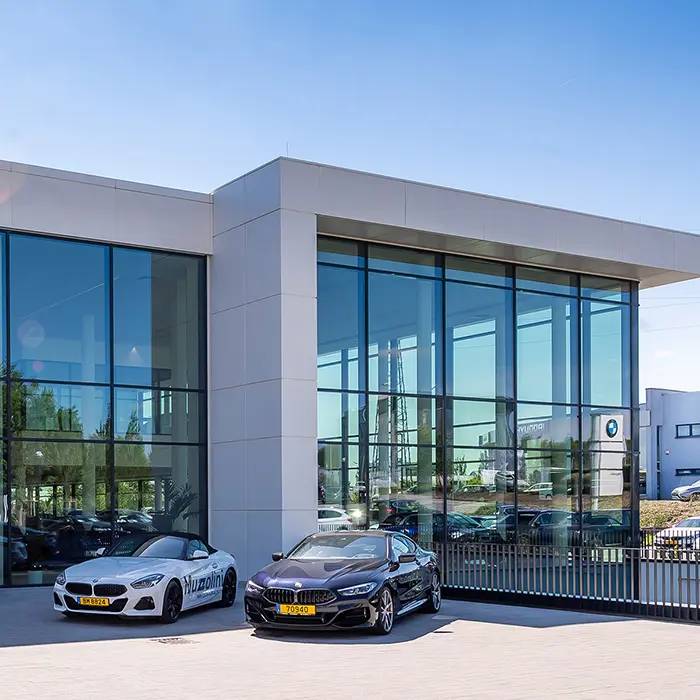

The Muzzolini garage newbuild presents cars of the BMW brand, sport model M and electric model BMWi across a space of 4500 m2. Architect Louis Weisgerber deliberately avoided closed façade areas when designing the ambitious commercial building. The façade construction, made from high-strength VISS 60 steel profiles from Schüco Jansen Steel Systems and measuring up to seven and a half metres high, allows views into the showroom from all sides.
Download (jpg, 1,3 MB)
Image credits: Muzzolini garage/Benoit Deprez

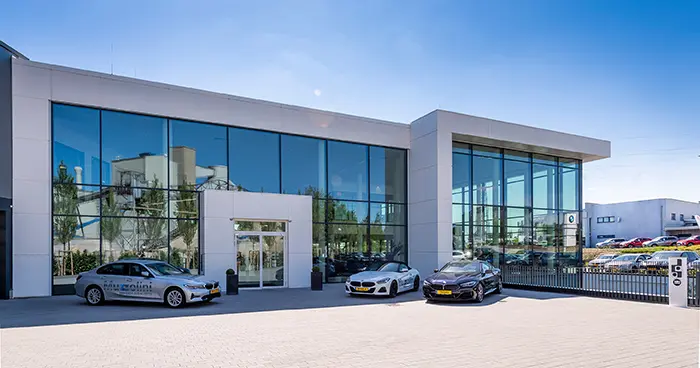

The façade modules were developed from the concrete skeleton of the building shell and measure 2.5 x 3.0 m as standard.
Download (jpg, 3,8 MB)
Image credits: Muzzolini garage/Benoit Deprez

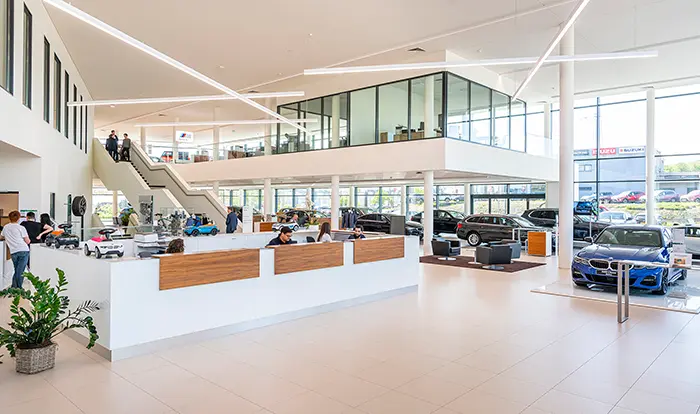

However, in the two-storey foyer, the façade stretches to an impressive height of 7.5 m, with the steel mullions continuing as one piece.
Download (jpg, 3,0 MB)
Image credits: Muzzolini garage/Benoit Deprez
The highlight is that the load of the horizontal sun shading is borne directly by the façade profiles. For this, steel flats, on which the tubular profile load-bearing structure rest, were welded to the transoms.
Download (jpg, 3,1 MB)
Image credits: Muzzolini garage/Benoit Deprez
The offices are located in a cube on the top floor, which is fitted with safety barrier glazing made from VISS profiles from Schüco Jansen Steel Systems.
Download (jpg, 2,5 MB)
Image credits: Muzzolini garage/Benoit Deprez

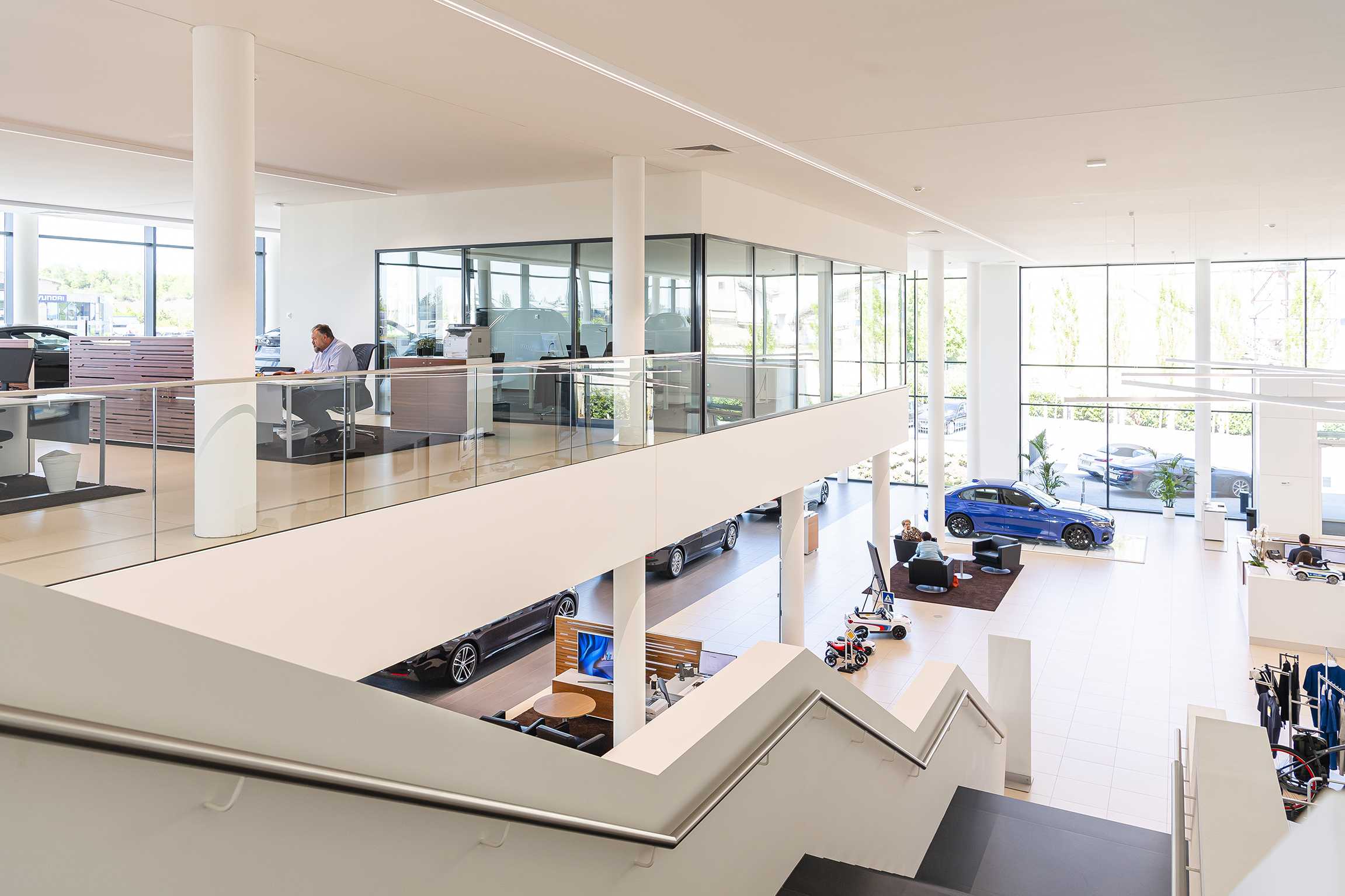

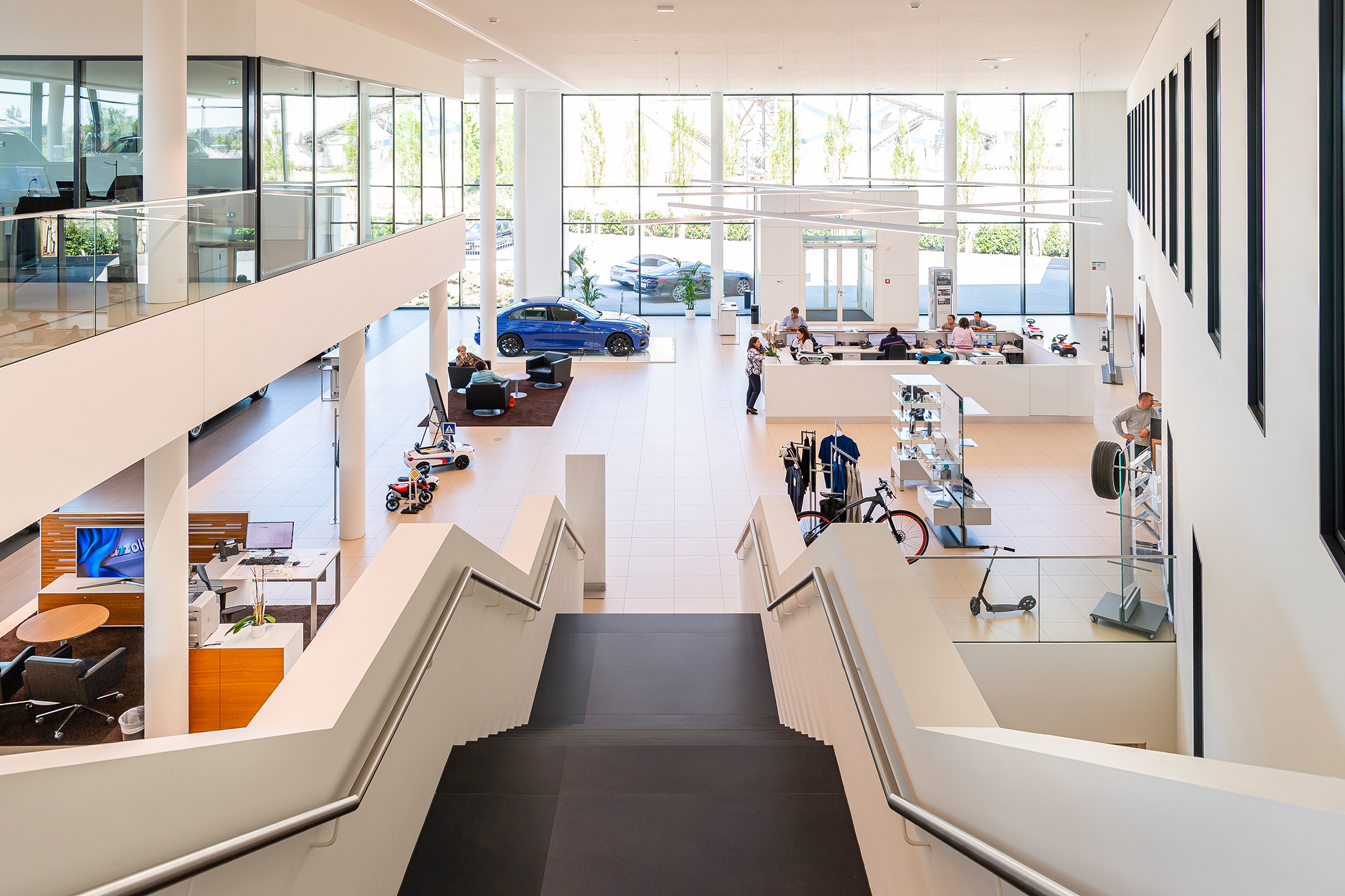

A wide staircase connects the ground floor to the upper floor; with a meeting area in front of the offices.
Download (jpg, 2,0 MB)
Image credits: Muzzolini garage/Benoit Deprez
Employees can always see the showroom from their desks too thanks to the interior windows made from the VISS steel profile system.
Download (jpg, 2,4 MB)HINT
