Schüco Türsystem AD UP 75 Commercial
Flexible modular system for functional commercial doors that are subject to heavy use

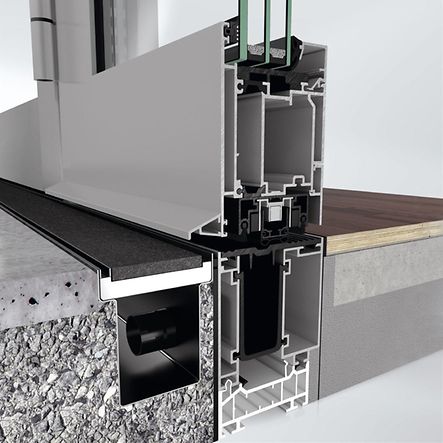

Perfect for increased requirements in commercial projects, the Schüco AD UP 75 (Aluminium Door Universal Platform) Commercial door system offers functional yet economical tailored solutions for a basic depth of 75 mm in busy areas thanks to its double-shell leaf profile construction (3-chamber leaf).
The flexibility of the modular systems enables the insulation values and performance to be scaled in accordance with the respective user requirements. For example, there is the option to retrofit AD UP 75 Commercial with a centre gasket for added watertightness, airtightness and thermal insulation. The highly stable and durable commercial doors, which can be designed as single or double-leaf versions, also ensure reliable safety, security and comfort, for example, with burglar resistance to RC 3, panic and partial panic functions and a barrier-free level threshold. Other system benefits include a clear selection and low level of complexity, attractive design thanks to slimline face widths, and easy attachment to Schüco façade and window systems.
Planning benefit
- Robust single and double-leaf commercial doors for a basic depth of 75 mm
- System flexibility: Scalability of insulation values and performance
- Retrofitting of the centre gasket in the event of a change in requirements (Schüco AD UP 75 Commercial)
- Slimline face widths that are also highly compatible with the Schüco AWS window system
- High level of safety, security and comfort: Burglar resistance to RC 3, panic and partial panic functions, barrier-free level threshold
- Low-maintenance and durable due to high stability with no bimetallic effect
- Low complexity for easy, economical planning, fabrication and installation
