Shop floor equipment

Workbench

VenT fittings assembly table

The assembly table for vent fittings is a versatile
swivel/tilt table suitable for a wide range of jobs when assembling vents and small frames. The size of the work surface can be adjusted using extensions and swivel arms.

Technical Data:

Length:	1500 mm
Width:	1400 mm
Height:	950 mm
Weight:	100 kg
Lifting capacity:	100 kg

Facade table

Setting up several tables for facade profiles in a line provides an ideal environment for assembling large units. The tables can be moved easily into position on rails. They can also be moved to one side when not required.

Technical Data:

Length:	2100 mm
Width:	600 mm
Height:	900 mm
Weight:	130 kg
Lifting capacity:	2400 kg

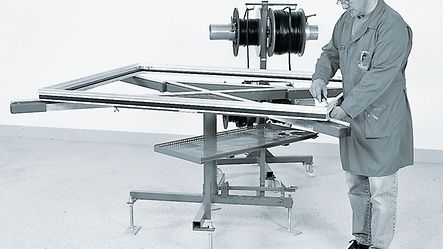

Swivel table

The swivel table can be used for working on vents and smaller frames. The units can be rotated vertically.

Technical Data:

Length:	1400 mm
Width:	1000 mm
Height:	750 mm
Weight:	65 kg
Lifting capacity:	100 kg

Special Solutions

Door profile assembly bench

The door profile assembly bench provides an effective facility for assembling fittings on door profiles. The assembly bench has storage space for fittings so that the employee always has the necessary accessories to hand. When assembling the fittings, the profile is clamped and can be rotated 90° forwards and backwards (in 15° increments). Plans or diagrams can be hung at eye level.

Technical Data:

Length:	2000 mm
Width:	800 mm
Height:	2000 mm
Weight:	128 kg
Lifting capacity:	50 kg

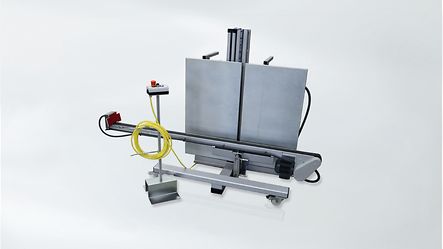

Lifting aid

The lifting aid lifts and transports profiles from a stillage to a machine, e.g.

Foiling machine
Isomat
Double-headed mitre saw
Processing centre
Gasket inserting machine
Loading magazine
or when picking profiles from one stillage to anothe

Prospect Lifting aid (pdf, 2,8 MB)

Foling Profiles

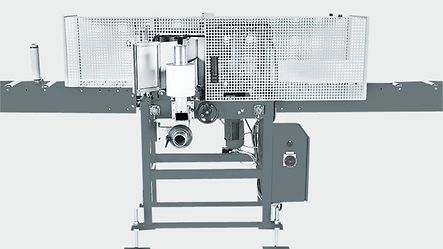

PFA Profile taping machine

The profile taping machine can be used to apply a protective tape on all profiles with two parallel surfaces. It is also possible to apply the tape on a third side, at a right angle to the other two sides, in a single operation.

Technical Data:

Total length:	10600 mm
Width:	1000 mm
Height:	1300 mm
Feed-in track:	4000 kg
Take-off track:	5000 mm

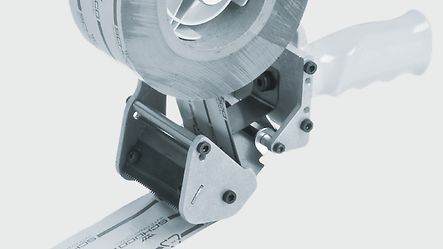

Manual foiling device

For foil width from 65 mm to 150 mm.

Surface protection for window, door and facade profiles for further processing
A guide on the side for rolling
Adjustable brake on roller

Trolleys

Spool rack

To take Schüco gasket spools.

To carry 4 spools
Angle brake for each spool
Spool racks moveable in all directions and have locking brakes

Technical Data:

Length:	960 mm
Width:	960 mm
Height:	1500 mm
Weight:	60 kg

Accessories

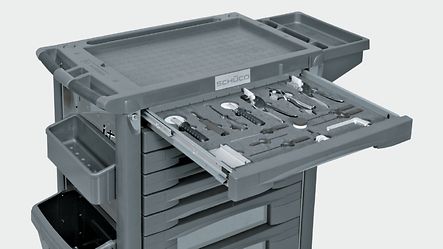

Workshop trolley

Trolleys for preparing hand tools for metal fabricators with special insert for Schüco tools.
Optional: 8 different tool modules.

Large polypropylene work surface with ergonomic handle
8 drawers (6 x 60 mm, 2 x 130 mm)
Full extension drawers
Drawer handle with integrated lock
Central locking
2 castors and 2 fixed wheels (125 mm)
Parking break

Technical Data:

Length:	770 mm
Width:	475 mm
Height:	960 mm
Weight:	90 kg

Compressed air filler pump

For filling the compressed air sprayer (Art. No. 296 702) with compressed air.

Fixed

Compressed air sprayer

For economical, targeted use of cleaning agent and/or degreaser (Art. No. 298 290) and silicone oil (Art. No. 298 466).

Refillable
Filling adapter supplied
Content: approx. 0,4 Liter
Operating pressure: 0,6 − 1,5 MPa
