Schüco Internet of Façades
We design and unleash the power of the digital building envelope
Until now, the façade has marked the boundary between the inside and outside of a building. But what would happen if this boundary was turned into a connection? If the façade became an interface between the inside and outside, the physical and digital world?
Data and information merge, and building components and even entire buildings are networked with their surroundings. The digital building envelope becomes the backbone of modern, future-oriented buildings and smart cities. It collects and communicates data and information – and creates digital solutions that make our urban spaces more efficient, more sustainable and nicer places to live.
Boundaries become connections, connections become possibilities and possibilities become advantages. With the Schüco IoF, we design and unleash the full power of the digital building envelope.
For façades that can do more.

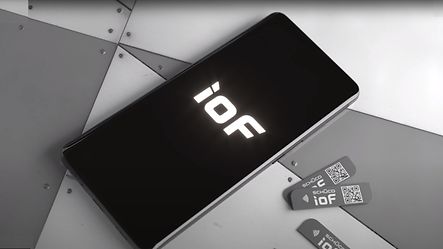

IoF ID – a small tag with a big impact
Every journey, every vision begins with the first step. For the Internet of Façades, the first step is the IoF ID. This is a small tag which gives every façade unit in a building its own digital identity. All of the data, information and documents relating to the unit are stored there and will be available throughout the duration of the unit's useful life. That is not just the first important step towards creating a digital building envelope, it also makes the day-to-day work of Schüco partners much easier.

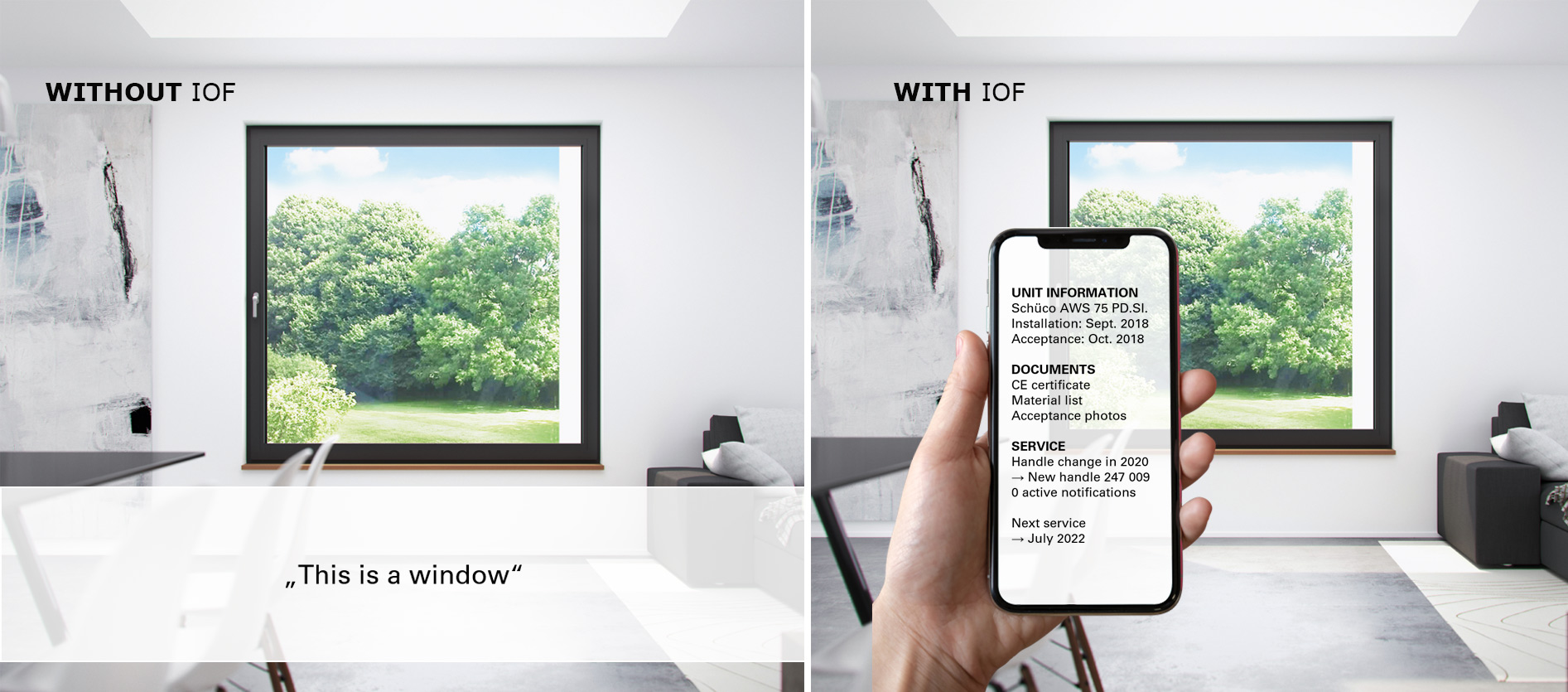

Which handle was installed? What maintenance work was carried out? How can old components be recycled? All this information is available from the digital twin and can be tracked anytime, anywhere. For clients, investors or facility managers, this means a better overview, more information and ultimately greater control.
The future of the digital building envelope starts here: with Internet of Façades solutions such as the new IoF ID from Schüco. For façades that can do more.
All of that ...and much more!
The Schüco IoF ID provides a number of benefits.
Location in the building
Every unit can be assigned an item number, e.g. from the current building plans. The advantage of this is that sub-contractors will be able to see immediately where the unit is located according to the plans.
Simple and direct
Acceptance and documentation
After acceptance/installation, photos of the unit can be taken, for example, and linked with the unit and date. The advantage of this is direct detection if a defect is reported. Simple chain of proof.
Documents can be marked in IoF as “For revision” and added to a document at the touch of a button. The futile searching for documents for every project is therefore a thing of the past.
To get straight to the point

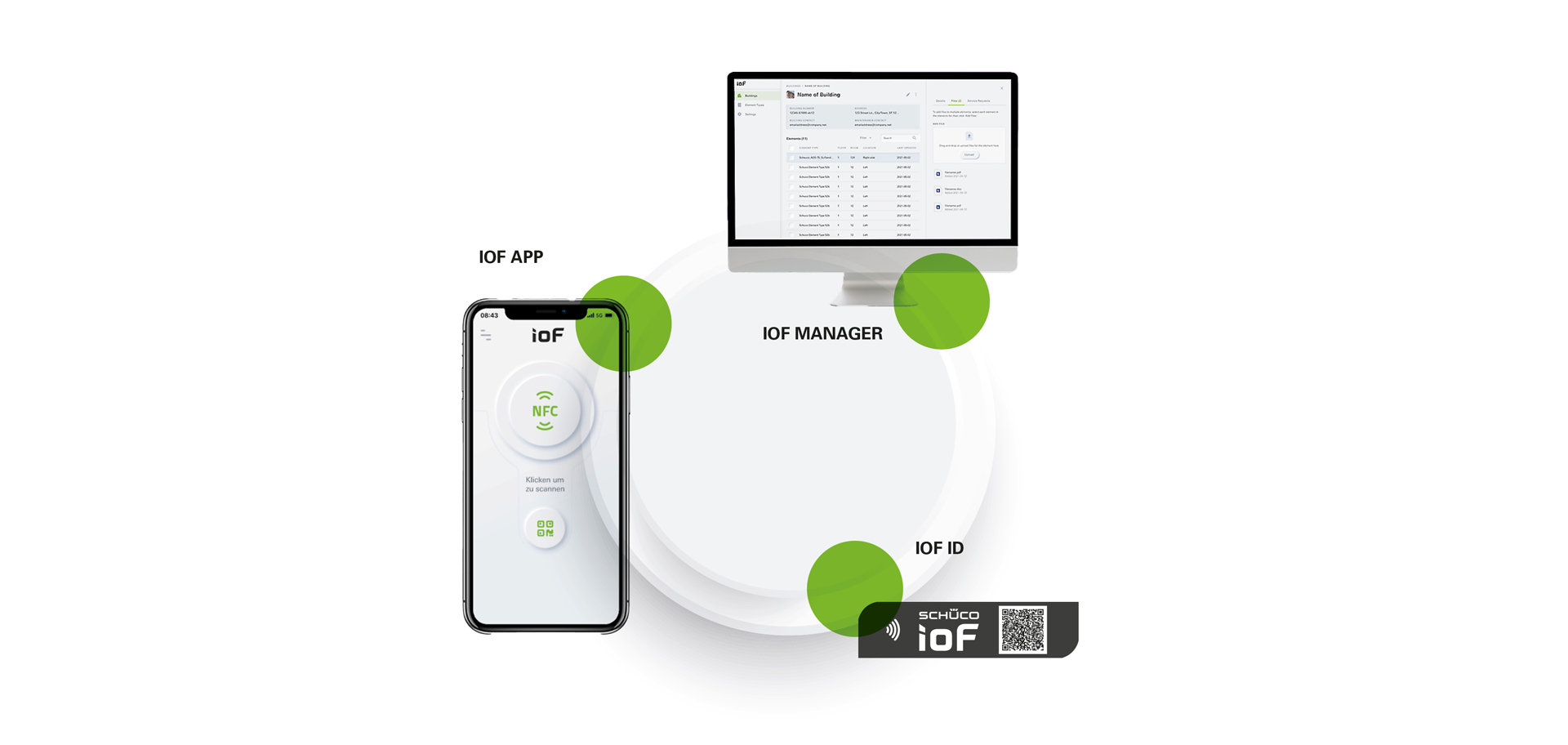

A perfect trio: IoF hardware, software and app
- IoF ID
- IoF APP
- IoF Manager
It couldn't be simpler
No power supply No cabling. No control unit.

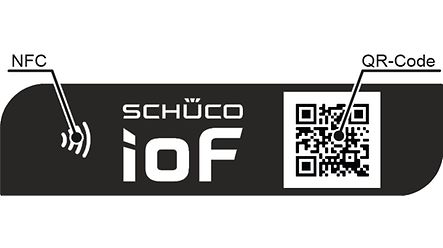

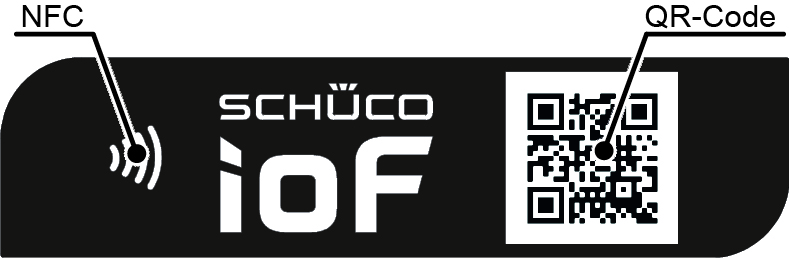

Near Field Communication (NFC)

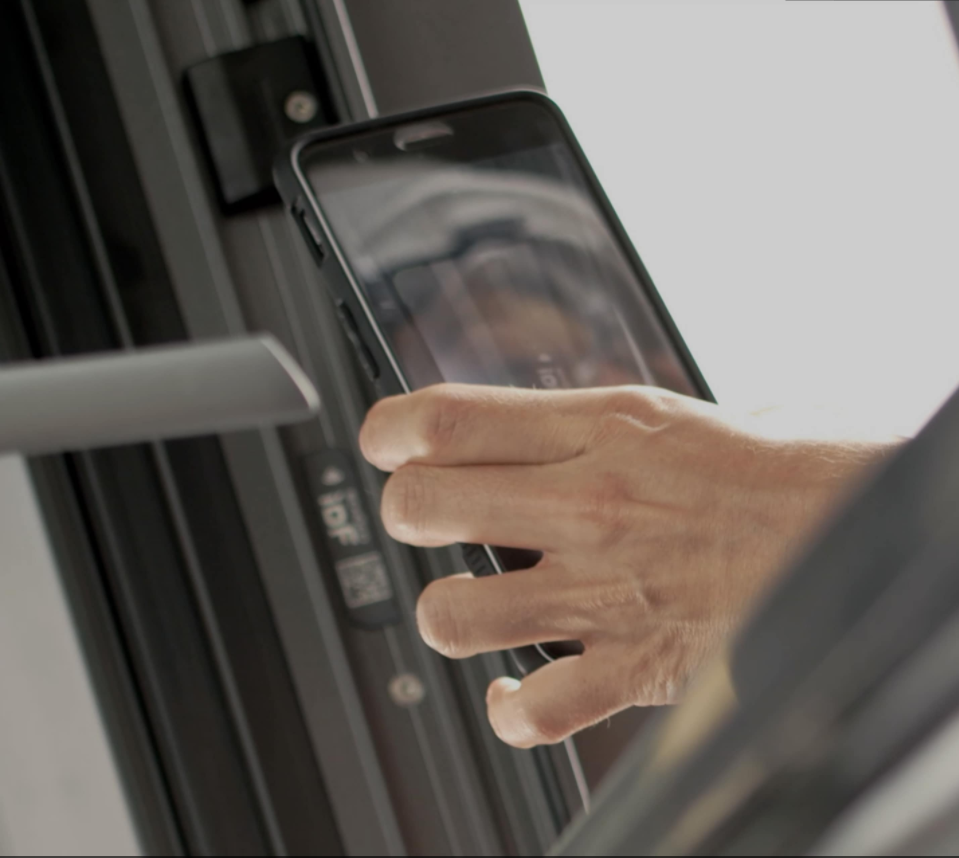

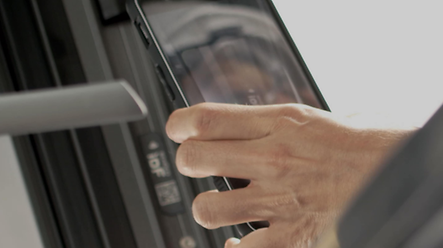

URL and unique ID. NFC for contactless data retrieval. The data is retrieved using a smartphone.
URL and unique ID. The data is retrieved using a smartphone camera.

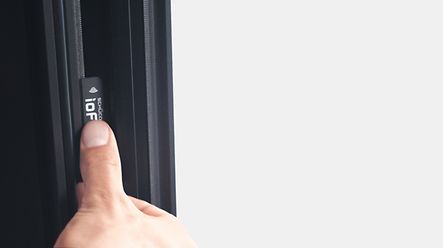

Installation of the IoF ID
Select the item.
Clean the item.
Stick on the IoF ID.

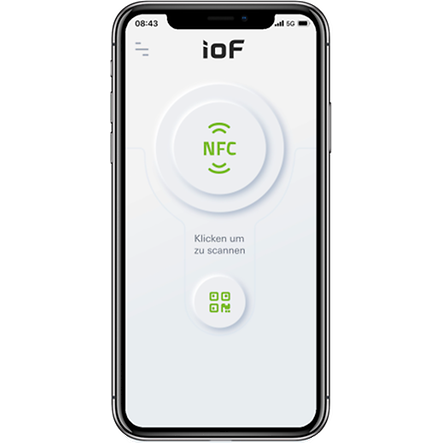

One app, two uses
The IoF app can be used for both B2B and B2C customers. The difference is in the login. B2B content can be retrieved via login and the appropriate rights. B2C content can be viewed without logging in.
- Create a digital unit (digital twin) with basic information
- Assign the digital unit to a building/project
- Save the installation and acceptance date
- Create and view service requests
- All of the information and documents for a unit can be viewed
- Unit information relevant for the end customer, such as location, acceptance date, etc.
- Create service requests
- Link to the Schüco DocuCenter (area not requiring login)

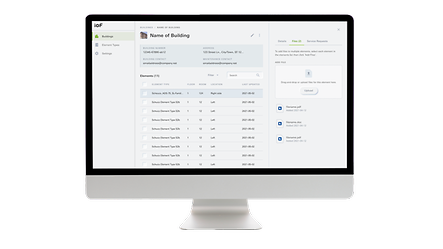

Browser-based B2B application
The IoF Manager is a browser-based application (for mobile end devices too), intended specifically for B2B customers.
- Create buildings / projects
- Allocate units
- Create new users
- Add important documents and certificates
- Create review documents
- Process service requests
Go directly to the IoF Manager
