Certified buildings are on trend

Today, high-quality office buildings in central locations are planned, constructed and certified sustainably, taking into account economic considerations. The assessment is based on economic, ecological and socio-cultural aspects, as well as the technical and process quality. The goal is to ensure available materials are used through a user-oriented, durable and recyclable construction method in order to conserve resources and the environment and safeguard the health of residents.

Building certifications like the German Sustainable Building Council (DGNB) seal, LEED and BREEAM aim to make the sustainability benefits of a property measurable and are therefore increasing in importance around the world. In this connection, we had the sustainability performance of our products checked by construction planning and consultancy firm, Drees & Sommer, back in 2014. The result: window and façade systems from Schüco fully comply with the requirements of various certification systems.


Building certifications are issued by independent non-profit organisations and provide investors with key information about the current value and the value retention of a building.Properties that have been certified as sustainable are of increasing interest to homeowners and renters, as they promise comparatively low operating and ancillary costs.

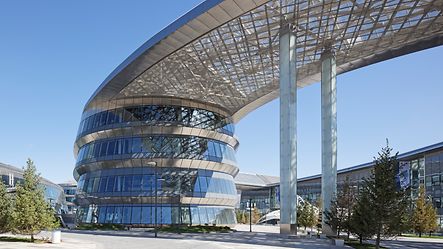

Cradle-to-Cradle certification in Silver: FWS 50.SI façade system, EXPO 2017 PAVILIONS, Kazakhstan.   © Jochen Helle
Cradle-to-Cradle certification in Silver: FWS 50.SI façade system, EXPO 2017 PAVILIONS, Kazakhstan. © Jochen Helle

Overview of the main certificates

BREEAM

BREEAM

The British sustainability certificate was developed in 1990 (amended in 2008) and is the oldest test certificate in the field of sustainable construction.


BREEAM guidelines (pdf, 1,2 MB)

www.breeam.org

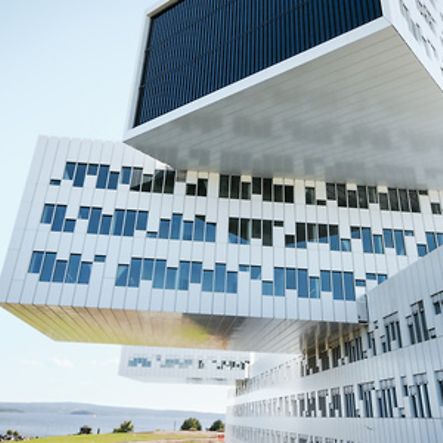

BREEAM certified: Statoil, Fornebu, Norway
BREEAM certified: Statoil, Fornebu, Norway
German Sustainable Building Council (DGNB)

German Sustainable Building Council (DGNB)

The German Sustainable Building Council certifies the exceptional fulfillment of many sustainability criteria in terms of ecology, economics, socio-cultural and functional aspects, technology, processes and location. If the criteria of the standard have been exceeded, the GeSBC awards the GeSBC certificate in bronze, silver or gold. There is also the possibility to gain pre-certification in the planning phase.


DGNB guidelines (pdf, 1,5 MB)


www.dgnb.de


DGNB Navigator: The DGNB Navigator is a comprehensive online database. Architects, specifiers, clients and everyone involved in the building can use it to find detailed information about construction products and their key values, such as details on environmental impact, calculating lifecycle costs, energy requirements or the emissions behaviour of the configured products. Schüco systems are also represented in the Navigator.

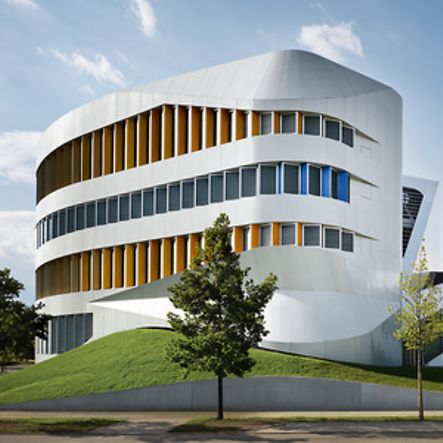

DGNB certified: Centre for Virtual Engineering (ZVE), Stuttgart
LEED

LEED

The LEED (Leadership in Energy and Environmental Design) assessment system was developed by the U.S. Green Building Council to classify ecological building.


LEED guidelines (pdf, 1,7 MB)

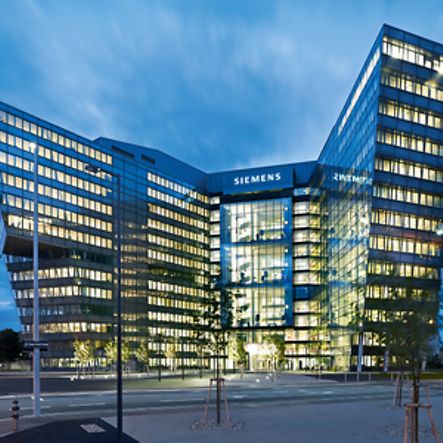

LEED-zertifiziert: Siemens City, Wien, Österreich
BNB

BNB

BNB is the evaluation system for sustainable building of the German Federal Ministry for the Environment, Nature Conservation, Building and Nuclear Safety. The aim of sustainable building is to protect general commodities such as the environment, resources, health, culture and capital. The evaluation areas of the system have been created on the basis of this.


BNB guidelines (pdf, 1,5 MB)

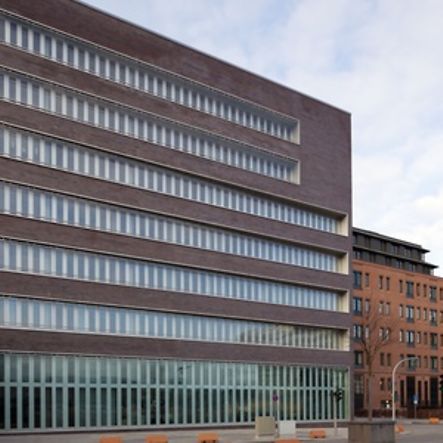

BNB-certified: Main customs office, Hamburg

Planning and consultancy with long-term perspectives – EPDs for Schüco systems

An EPD (Environmental Product Declaration) is a document that a company uses to disclose quantified information regarding the environmental impact of a product. In the construction industry, EPDs provide key data for green building evaluation and building certifications.

The Schüco EPDs for aluminium and PVC-U systems therefore provide consistent data about production, dismantling through recycling and feeding back into the closed material cycle, as well as disposal, and form an important basis for sustainable construction.


Individual EPDs can be created for our aluminium systems using our SchüCal planning tool. Their creation is integrated in our SchüCal planning and calculation software. Metal fabricators can use the specially developed EPD tool in the program to obtain product-specific EPDs for Schüco constructions, which are created and independently tested in accordance with ISO 14025 and EN 15804.Example EPDs for Schüco systems can also be found on the website of our EPD programme operator, the Institut Bauen und Umwelt e.V.

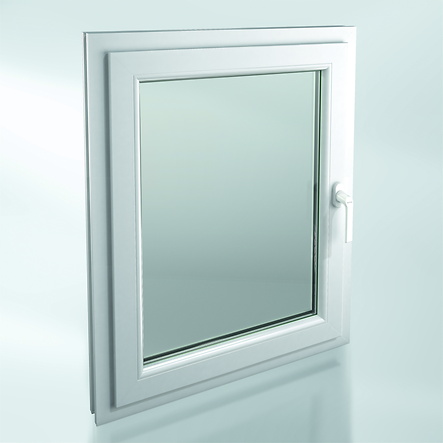

Association EPD for PVC-U windows

For our PVC-U window systems, we use an industry EPD which applies to PVC systems with a basic depth of 70 mm. An additional “average EPD” for systems ≥ 80 mm in accordance with ISO 14025 and DIN EN 15804 is near completion. Specific data for PVC-U windows has been calculated, compiled and evaluated for these EPDs in an EPPA working group at European level, with the involvement of Schüco. The potential environmental impact of PVC-U windows across their entire lifecycle is shown here as a percentage as per their manufacturing, utilisation and end-of-life phases. With its 70 mm systems, Schüco CT 70 AS and Schüco CT 70 MD, Schüco is represented in the DGNB Navigator on the basis of+A72:A75 this association EPD  Additional information can be found there.

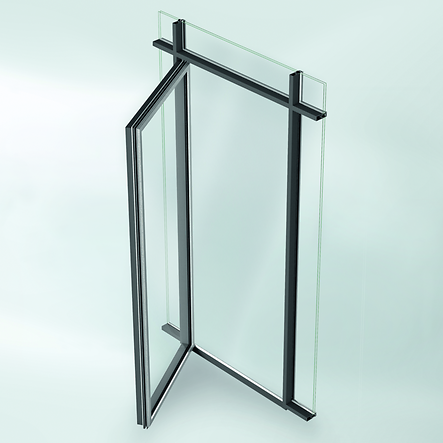

Sample EPD for steel windows, doors and façades

Schüco Jansen Steel Systems provides industry-specific Environmental Product Declarations in accordance with ISO 14025 and EN 15804 for windows, doors and façades. These can be purchased quickly and easily from the ift.

Open the link to the ift website and select one of the following sample EPDs on the right-hand side of the webpage:


  • EPD windows and lift and slide elements made of steel, stainless steel and weatherproof steel
  • EPD facades made of steel, stainless steel and weatherproof steel
  • EPD doors and fire resistant doors made of steel, stainless steel and weatherproof steel


Download and complete the required form, then send it back to the specified link. The ift will then contact you and provide you with the issued EPD form.

Clearly documented sustainability

Sustainability reports

Based on the guidelines of the internationally established standard of the Global Reporting Initiative (GRI), our sustainability reports provide information on how sustainability is organised at Schüco.

Our motivation, our contribution

Brochures Sustainability

Find out more about the sustainability measures Schüco is undertaking to tackle the global challenges of our time.
