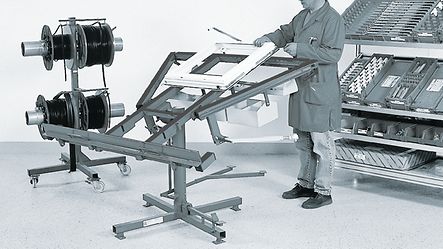

VenT fittings assembly table
VenT fittings assembly table
The assembly table for vent fittings is a versatile
swivel/tilt table suitable for a wide range of jobs when assembling vents and small frames. The size of the work surface can be adjusted using extensions and swivel arms.
Technical Data:
Length: | 1500 mm |
Width: | 1400 mm |
Height: | 950 mm |
Weight: | 100 kg |
Lifting capacity: | 100 kg |
Facade table
Facade table
Setting up several tables for facade profiles in a line provides an ideal environment for assembling large units. The tables can be moved easily into position on rails. They can also be moved to one side when not required.
Technical Data:
Length: | 2100 mm |
Width: | 600 mm |
Height: | 900 mm |
Weight: | 130 kg |
Lifting capacity: | 2400 kg |

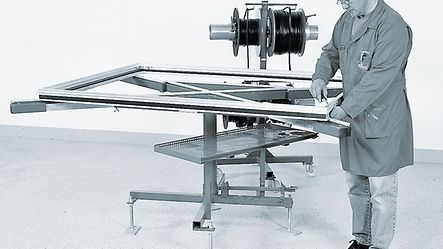

Swivel table
Swivel table
The swivel table can be used for working on vents and smaller frames. The units can be rotated vertically.
Technical Data:
Length: | 1400 mm |
Width: | 1000 mm |
Height: | 750 mm |
Weight: | 65 kg |
Lifting capacity: | 100 kg |
Special Solutions

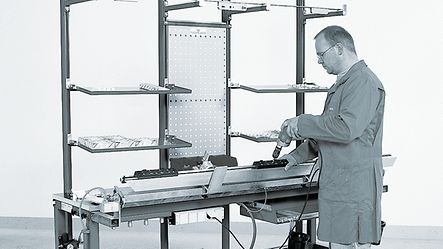

Door profile assembly bench
Door profile assembly bench
The door profile assembly bench provides an effective facility for assembling fittings on door profiles. The assembly bench has storage space for fittings so that the employee always has the necessary accessories to hand. When assembling the fittings, the profile is clamped and can be rotated 90° forwards and backwards (in 15° increments). Plans or diagrams can be hung at eye level.
Technical Data:
Length: | 2000 mm |
Width: | 800 mm |
Height: | 2000 mm |
Weight: | 128 kg |
Lifting capacity: | 50 kg |

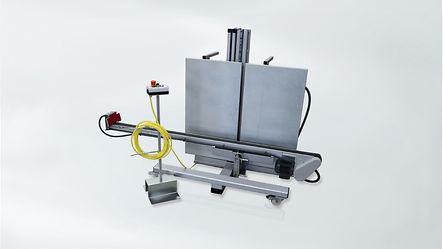

Lifting aid
Lifting aid
The lifting aid lifts and transports profiles from a stillage to a machine, e.g.
- Foiling machine
- Isomat
- Double-headed mitre saw
- Processing centre
- Gasket inserting machine
- Loading magazine
- or when picking profiles from one stillage to anothe

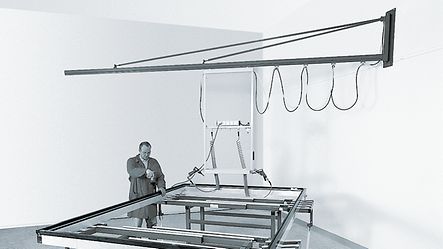

Swivel arm
Swivel arm
For easy access to small tools that require electricity or compressed air.
- Swivel arm with device holders
- Device holder with 4 compressed air and 4 electrical connectionspoints
- Tool storage facility 700 x 240 mm
- Line provided for use compressed air device
- Swivel arm can be wall-mounted
Technical Data:
Length: | 5000 mm |
Width: | adjustable |
Height: | 1800 - 3000 adjustable |
Weight: | 61 kg |
Lifting capacity: | 35 kg |
Foling Profiles

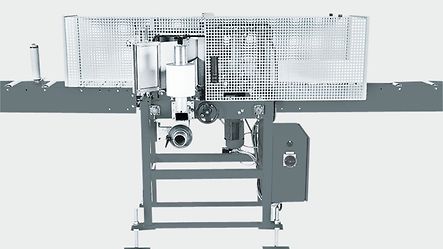

PFA Profile taping machine
PFA Profile taping machine
The profile taping machine can be used to apply a protective tape on all profiles with two parallel surfaces. It is also possible to apply the tape on a third side, at a right angle to the other two sides, in a single operation.
Technical Data:
Total length: | 10600 mm |
Width: | 1000 mm |
Height: | 1300 mm |
Feed-in track: | 4000 kg |
Take-off track: | 5000 mm |

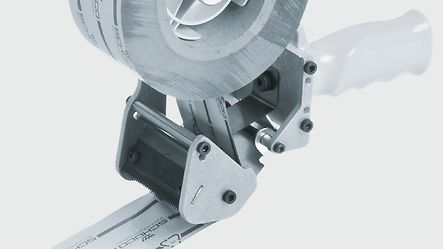

Manual foiling device
Manual foiling device
For foil width from 65 mm to 150 mm.
- Surface protection for window, door and facade profiles for further processing
- A guide on the side for rolling
- Adjustable brake on roller
Trolleys

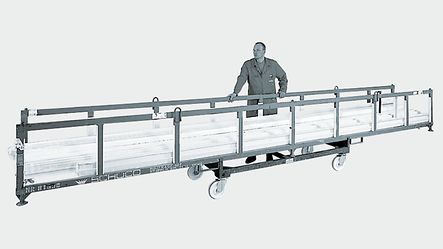

Stillage carrier
Stillage carrier
Stillage carrier for transporting Schüco stillages.
- For profile palettes up 760 mm wide
- Robust welded steel design
- Can be moved on 4 polyamide-castors, Ø 175 mm, all 4 with brake facility
Technical Data:
Length: | 4000 mm |
Width: | 800 mm |
Height: | 420 mm |
Weight: | 76 kg |
Lifting capacity: | 1300 kg |

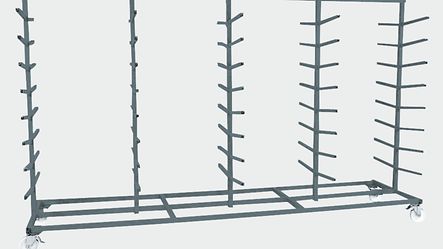

Long profile carrier
Long profile carrier
Long profile carrier for horizontal transport or storage of uncut profiles or mullion profiles from the facade.
- Profile carrier can be loaded on both sides
- 8 rack arms both left and right
- Depth 475 mm
- Rack arms welded securely on to uprights
- Middle uprights adjustable
- Can be moved on 4 polyamide-castors, Ø 175 mm, 2 with brake facility
Technical Data:
Length: | 4000 mm |
Width: | 1000 mm |
Height: | 2500 mm |
Weight: | 750 kg |
Lifting capacity: | 1000 kg |

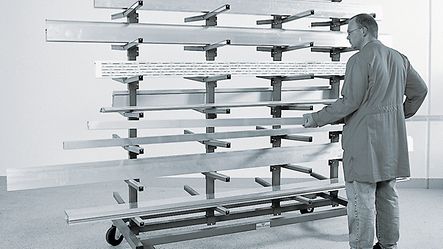

Profile bar carrier
Profile bar carrier
For horizontal storage and transport of long profile sections.
- Profile carrier can be loaded on both sides
- 7 pairs of rack arms per upright, adjustable to any length, allow variable distance between rack arms
- Soft rubber coating on rack arms
- 2 middle uprights adjustable
- Depth of rack arms 400 mm each side
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facility
Technical Data:
Length: | 2070 mm |
Width: | 860 mm |
Height: | 2000 mm |
Weight: | 128 kg |
Lifting capacity: | 1000 kg |
Short profile carrier
Short profile carrier
For horizontal storage and transport of short and medium-length profile sections.
- profile carrier can be loaded on one side
- 12 sections
- Adjustable section width, max. 90 mm
- Compartment depth 400 mm
- Section dividers and surfaces with PVC-U coating
- Side transport handles
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facility
Technical Data:
Length: | 1400 mm |
Width: | 800 mm |
Height: | 1500 mm |
Weight: | 84 kg |
Lifting capacity: | 1000 kg |
Platform profile carrier
Platform profile carrier
The platform profile carrier is a universal trolley for stacking small parts and profile sections for transportation.
- Profile carrier can be loaded in a number of ways
- 27 mm thick flat board base
- 800 mm steel tubes on all 4 corners for mounting tube stumps
- 4 Profile attachment options on one side of steel tube
- Can be moved on 4 polyamide-castors, Ø 175 mm, all 4 with brake facility
Technical Data:
Length: | 1350 mm |
Width: | 950 mm |
Height: | 1000 mm |
Weight: | 42 kg |
Lifting capacity: | 1000 kg |

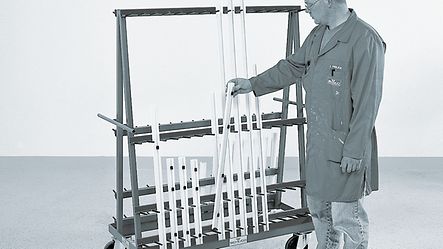

Glazing bead carrier
Glazing bead carrier
The glazing bead carrier is designed for vertical transport of glazing beads.
- Transport carrier for glazing beads and supplementary profiles
- Storage section 1400 mm high
- 4 sorting sections with fixed divisions
- 30 compartments, 15 on each side
- Compartment depth 100 mm
- Compartment height 65 mm
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facilit
Technical Data:
Length: | 1200 mm |
Width: | 600 mm |
Height: | 1600 mm |
Weight: | 62 kg |
Lifting capacity: | 300 kg |
Vent frame carrier
Vent frame carrier
The vent frame carrier is designed for mobile frame storage. Felt pads ensure that frames can be inserted and removed without scratching.
- Trolley for transporting vent frames
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facility
Technical Data:
Länge: | 2100 mm |
Breite: | 800 mm |
Höhe: | 2550 mm |
Gewicht: | 118 kg |
Tragkraft: | 1000 kg |

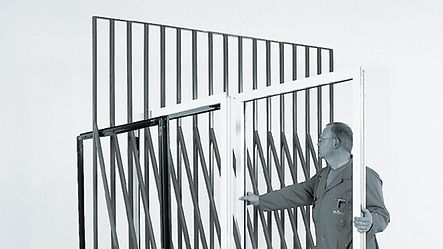

Outer frame carrier
Outer frame carrier
The outer frame carrier can be used for mobile temporary storage. Frames can be pushed in easily using the rollers. The frames are fixed into the carrier by means of a hand brake.
- Trolley for transporting outer frames
- Compartment height: 2300 mm
- Compartment width: 100 mm
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facility
Techncial Data:
Length: | 2100 mm |
Width: | 800 mm |
Height: | 2550 mm |
Weight: | 118 kg |
Lifting capacity: | 1000 kg |
Indoor materials carrier
Indoor materials carrier
The indoor materials carrier is designed for transportation within the workshop.To save space, the carriers can be pushed together when not in use.
- when empty, trolleys can be pushed together
- Working width 700 mm
- Storage height 1500 mm
- Storage and base sections covered with wear-resistant rubber profile that is resistant to water-soluble paint
- Can be moved on 4 polyamide-castors, Ø 150 mm, 2 with brake facility
Technical Data:
Length: | 2120 mm |
Width: | 950 mm |
Height: | 1900 mm |
Weight: | 78 kg |
Lifting capacity: | 750 kg |

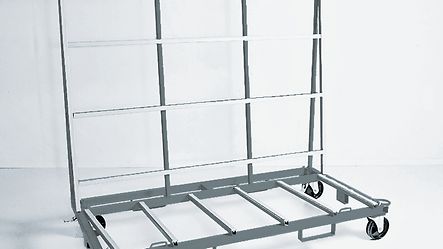

Outdoor materials carrier
Outdoor materials carrier
The outdoor materials carrier is designed for transportation within the workshop and transportation to site. The carrier can be transported using forklift trucks or cranes and its removable wheels allow it to be loaded securely onto the lorry.
Technical Data:
Length: | 2000 mm |
Width: | 980 mm |
Height: | 1950 mm |
Weight: | 90 kg |
Lifting capacity: | 750 kg |

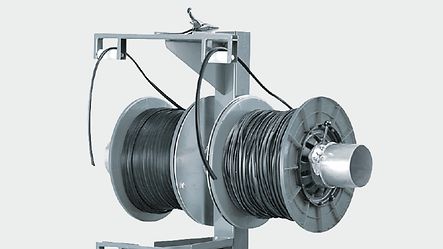

Spool rack
Spool rack
To take Schüco gasket spools.
- To carry 4 spools
- Angle brake for each spool
- Spool racks moveable in all directions and have locking brakes
Technical Data:
Length: | 960 mm |
Width: | 960 mm |
Height: | 1500 mm |
Weight: | 60 kg |
Accessories

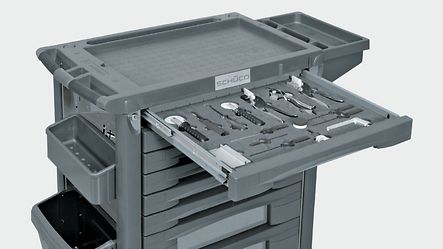

Workshop trolley
Workshop trolley
Trolleys for preparing hand tools for metal fabricators with special insert for Schüco tools.
Optional: 8 different tool modules.
- Large polypropylene work surface with ergonomic handle
- 8 drawers (6 x 60 mm, 2 x 130 mm)
- Full extension drawers
- Drawer handle with integrated lock
- Central locking
- 2 castors and 2 fixed wheels (125 mm)
- Parking break
Technical Data:
Length: | 770 mm |
Width: | 475 mm |
Height: | 960 mm |
Weight: | 90 kg |
Compressed air filler pump
Compressed air filler pump
For filling the compressed air sprayer (Art. No. 296 702) with compressed air.
Basınçlı hava püskürtücü
Basınçlı hava püskürtücü
Temizlik maddesi ve / veya yağ çözücünün (Art. No. 298 290) ve silikon yağının (Art. No. 298 466) ekonomik, hedeflenen kullanımı için.
- Doldurulabilir
- Doldurma adaptörü verilir
- İçerik: yakl. 0,4 Litre
- Çalışma basıncı: 0,6 - 1,5 MPa
İpucu
