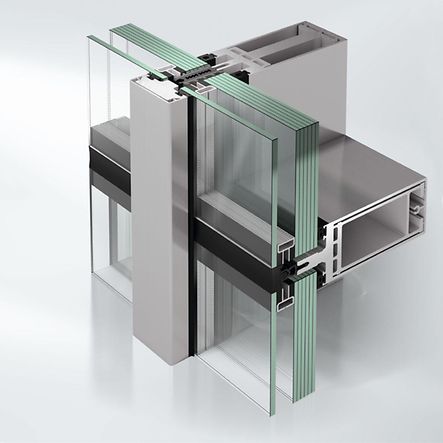

High security façade in Semi-SG look – with individual accent options (vertical, horizontal)

The S1es-50 Semi-SG series has been tested at accredited test institutes in accordance with European standards for burglar resistance up to resistance class RC 4.

The resistance classes (burglar resistance and blast resistance) can be combined with one another flexibly without any visual difference.

Attractive architectural accents can be achieved by means of a horizontal or vertical emphasis on the façade.

The comprehensive range of aluminium and stainless steel cover caps offers additional design freedom.

Despite the high security, the S1es-50 Semi-SG series stands for modern design and maximum design freedom. The narrow face widths allow for use on architecturally challenging building projects for government institutions, industrial buildings, banks as well as private residential projects.

All products in the SÄLZER® SYSTEM (doors, windows) can be integrated in the relevant resistance class. This guarantees maximum burglar, bullet and blast resistance up to the highest resistance classes.

The S1es-50 Semi-SG series can be combined seamlessly with the Schüco FWS 50 SG system for graduated security requirements within a building.

Planning benefit

  • The mullion/transom construction was tested in accordance with DIN 1627-1630 (burglar resistance) up to RC 4
  • Natural glazing rebate ventilation and controlled drainage
  • A large range of cover caps, pressure plates and mullion options also coordinated with the Schüco FWS 50 range
  • As a semi-structural glazing façade with horizontal or vertical profile accentuation, the construction offers a high degree of design freedom
  • The S1es-50 Semi-SG series can be combined seamlessly with the Schüco FWS 50 SG series for graduated security requirements in the building envelope
  • Slimline butt joints can be wet-sealed or dry-glazed (shadow gap or flush-fitted)
  • System approval in accordance with DIN EN 13830
