3. Fabrication & Installation

Utilise the benefits of Schüco:

  • Paperless workshop and intelligent networking of machinery ensures efficient fabrication
  • Individual workshop planning for Schüco metal partners optimises use of resources
  • Modern machinery enables easy fabrication of complex systems
Video Preview Planung & Konfiguration

Digital solutions for fabricators

schueco-fenster1

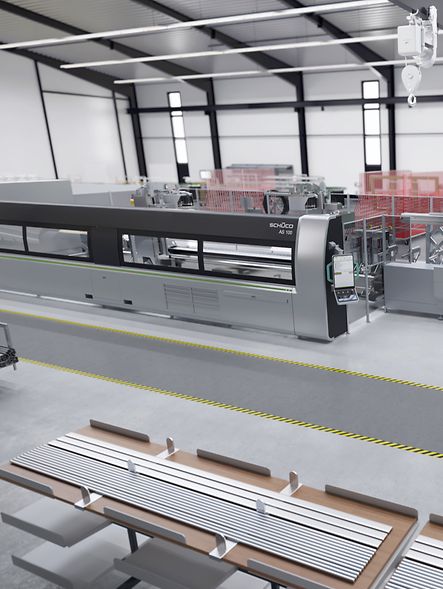

Workshop planning

More added value through individual solutions

In order to utilise the available resources in the best possible way and increase quality and performance, the current fabrication processes are initially considered as part of an as-is analysis. Based on this, Schüco designs a new, individual fabrication concept which is adapted to suit the actual conditions and the needs of the Schüco partner. The result is long-term cost reduction and quality assurance through process optimisation and increase in efficiency in all areas of fabrication.
schueco-fenster1

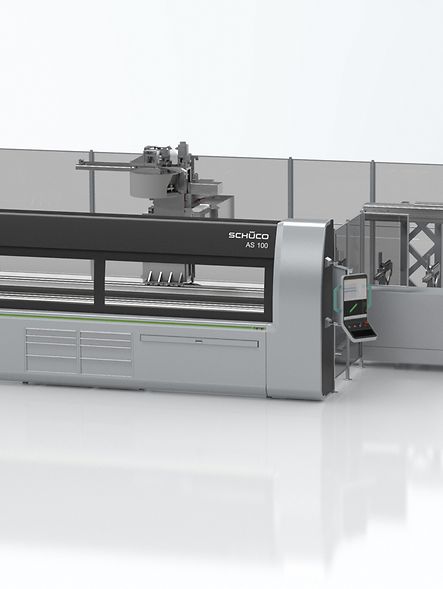

AS 100

New fabrication system with numerous option

The new fabrication system with numerous profile cutting and notching options is as flexible as a modern 5-axis CNC machine. With its high speed and continuous fabrication process, the Schüco AS 100 also offers the benefits of a continuous feed system. In addition to its pioneering high performance in terms of fabrication optimisation, the system impresses with its minimal space requirements. This is ensured by a combined loading and unloading magazine, which can hold profiles up to 7,500 mm and thereby enables the longest unmanned operation of the machines available on the market.
schueco-fenster1

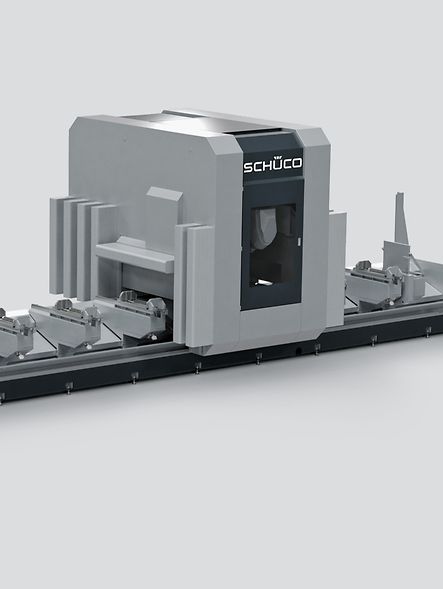

AF 500

Highly flexible, cost- saving solution for fabricating

The 5-axis Schüco AF 500 CNC machine is a highly flexible, cost- saving solution for fabricating windows, doors and façades from aluminium profiles. With processing lengths of up to 7,300 mm and excess lengths in two stages, 3- sided processing and end-of-profile machining, the system is the basis for virtually any metal fabrication task. Two highlights include processing and cutting of aluminium profiles in one work step as well as the CNC-controlled, self-positioning clamps, which shorten fabrication time significantly.
schueco-fenster1

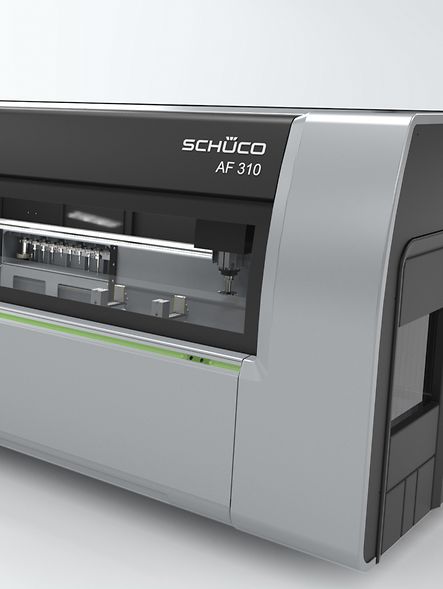

AF 310

New, high-performance 4-axis CNC machine

The Schüco AF 310, successor to the Schüco AF 300, is a new, high-performance 4-axis CNC machine for flexible tasks in metal fabrication. With intelligent control, the latest milling spindle technology with 8.5 kW and a maximum torque of 13.5 Nm, as well as simple, ergonomic operation, the machine offers maximum dynamism and precision during fabrication. The redesigned two-stage clamping area of the five motorised clamps allows a triple-track sliding unit from the Schüco ASS 70.HI or Schüco ASE 80 series to be clamped, for example.
schueco-fenster1

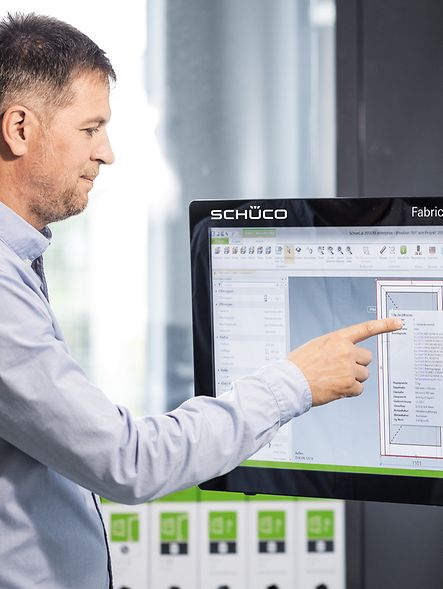

Fabrication Data Center

Speeds up fabrication processes considerably

With its unique package of hardware and software, including the SchüCal workshop version and Schüco Docu Center, the Schüco Fabrication Data Center speeds up fabrication processes considerably for the fabricator – by means of digital access to the latest Schüco project and manual information as well as installation videos directly from the workshop. Another successful module is the workshop-compatible hardware, which is immediately ready for use without the need for training. A barcode reader ensures error-free assignment of the profile bars too.
