Montaj

• Efficient crimping of the four corner joints for windows, doors and façade units made from continuous, mitred aluminium profiles.
• Barrier-free insertion of a fitted frame or loose profile bars.
• The automatic, simultaneous crimping of 4 corners enables fast and secure processes for frame joints.
• Horizontal fabrication of profile frame
• The in-house Schüco clamping and crimping system distributes the cutting tolerances evenly across all 4 corners of a frame.

• One fixed crimping head, two easy-to-position crimping heads on tracks and one freely moveable crimping head on a steel work bench
• Calibration of 2 crimping heads with digital display
• Flexible crimping head which can be positioned using two lasers
• Rapid adjustment for different profiles by means of a crank and a hand wheel
• Increased freedom as there are no stop blocks
• Profile wall of 2 mm
• Thicker wall on request
• Minimum distance of 31 mm between top and bottom knife
• Maximum distance of 166 mm (without conversion); 213 mm with change-over of the crimping knives

• Electronic positioning of both linear heads
• Electronic positioning of the top crimping knives
• Increased freedom as there are no stop blocks
• Profile wall of 2 mm
• Thicker wall on request

Yapışkan enjeksiyonlu köşe kıvırma makinesi.
Bu makine 3 görevi birleştirir:

• Çerçeveyi kıvırmak
• Yapıştırıcıyı delmek
• Ölçülü yapışkan enjeksiyonları

Freze aleti ve pompa için manuel olarak ayarlanabilen mekanik kontrolörler, makinenin çalıştırılmasını kolaylaştırır.

Corner crimping machine for extreme requirements:

• Maximum crimping height: 300 mm
• 5 crimping levels
• Minimal internal size of frame: 270 x 270 mm

These features ensure machining of both small and large frames.

For efficient crimping of corner cleats in windows and doors made from aluminium profiles.

Mitre sealing machine for applying the mitre sealing compound (Art. No. 298 864) to aluminium mitre surfaces.

For driving the aluminium corner and T cleat nails into the clamped frames.

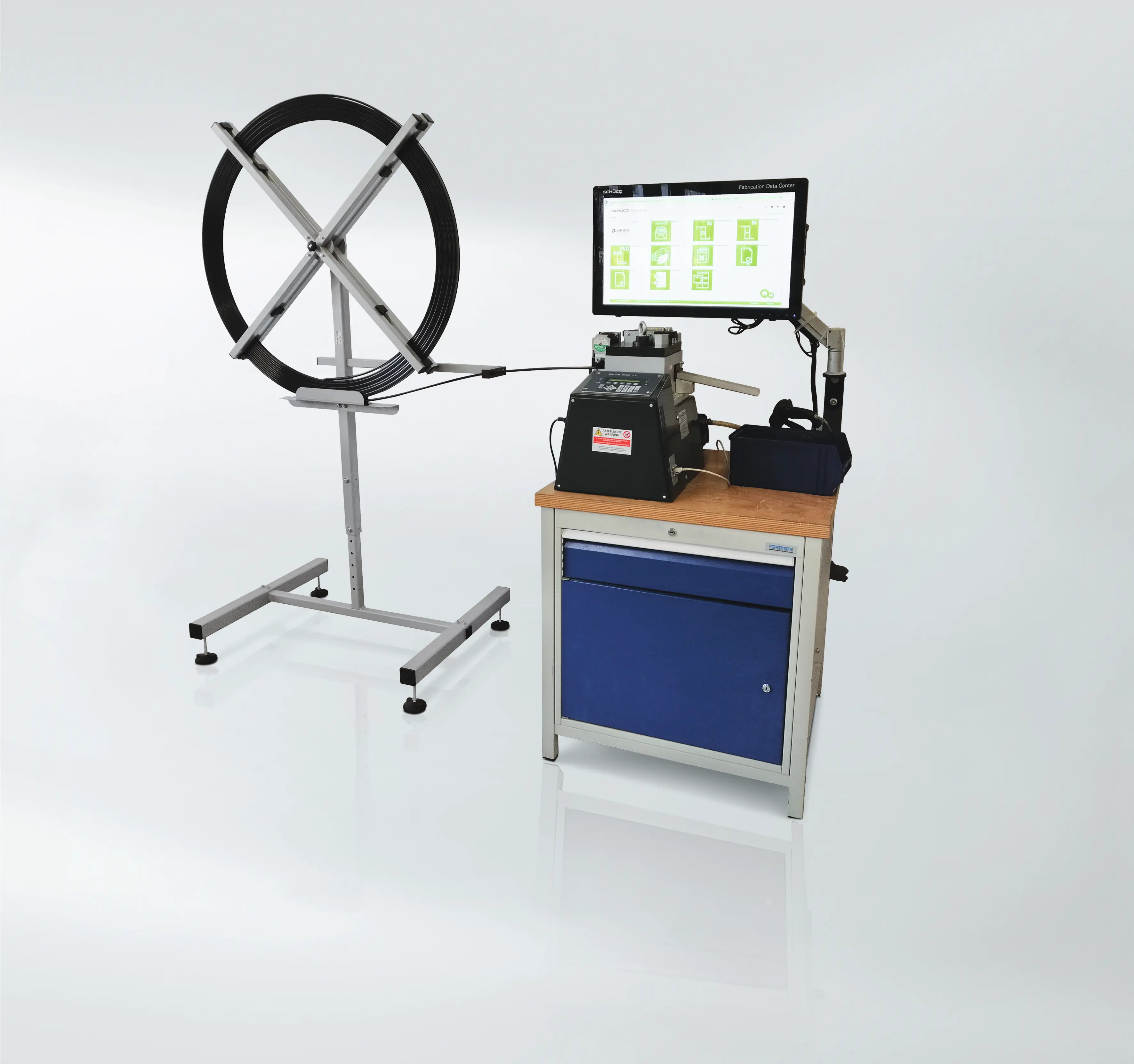

Automatic locking bar processor for rapid calculation and fabrication of locking bars for SimplySmart fittings.
The locking bar is calculated automatically for individual opening types, vent sizes and individual resistance classes.
No time spent on entering data from the manual.

The new automatic profile locking bar machine is the small revolution for every window production. In combination with the Schüco Fabrication Data Center, processing the Schüco SimplySmart fitting is now more reliable, easier and faster.

The intelligent duo handles all process steps – from calculation to automatic punching and cutting to length of the locking bars. A wide range of opening types and vent sizes as well as various resistance classes are now possible without any problems. Thanks to the little helper with great effect.

For automatic insertion of the glazing bead clips.

• No need for time-consuming, manual clipping of glazing bead clips.
• Glazing bead clips are clipped on at the specified distances from one another.
